Locomotive Fire Detection & Suppression Control Panel
The System Sensor panel has been engineered to function as a specialized locomotive fire detector and suppression controller. It continuously monitors thermal conditions within engine and electrical compartments and coordinates the activation of fire suppression technology when required.
How the System Works
This locomotive fire detection and suppression panel employs fixed-temperature detectors rated at 200°C to continuously monitor thermal conditions within engine and electrical compartments. These detectors are strategically positioned throughout identified fire-risk zones, providing early warning of any abnormal heat rising.
When a detector reaches its activation temperature, the system responds based on a dual-stage logic:
Single-detector activation: Triggers visual and audible alarms on the panel, alerting the operator to a potential fire condition.
Dual-detector activation: Automatically initiates the fire-suppression discharge sequence, releasing the extinguishing agent to control and suppress the fire.
Operator Configuration via LCD Touchscreen
The system provides a comprehensive configuration interface through the integrated LCD touchscreen, allowing operators to customize system behavior according to their locomotive’s operational requirements. Adjustable parameters include:
Suppression mode selection: Dual-shot or single-shot operation
Zone configuration: Enable/disable engine and electrical compartment detection zones
Alarm behavior: Latching, non-latching, or combined alarm logic
Shutdown signaling: Enable/disable shutdown triggers for manual release, engine alarms, and electrical alarms
Activation delays: Adjustable time delays for ME1, ME2, EC1, and EC2 alarm circuits
Suppression release delay: Configurable discharge delay following dual-gate activation
Power status monitoring: Primary and secondary supply supervision
Pressure switch configuration: Open/closed contact behavior
Fault monitoring: Real-time status of alarm circuits, actuator circuits, and short-circuit detection
Engine override control: Manual override function accessible directly from the touchscreen
System information: Serial number, compliance status, and OEM details
Bluetooth connection to access the history log on a mobile phone.
These configuration options allow the system to be adapted for various locomotive models, compartment layouts, and operational safety requirements without necessitating any hardware modifications, thus enhancing rail fire maintenance services.
System Architecture
All field devices—including detectors, actuators, trainline interfaces, and power connections—are routed through a central junction box. This junction box serves as the primary interface between the panel and the locomotive’s fire protection hardware.
Panel Construction & Compatibility

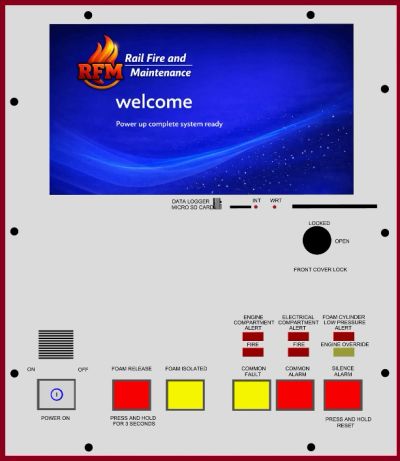

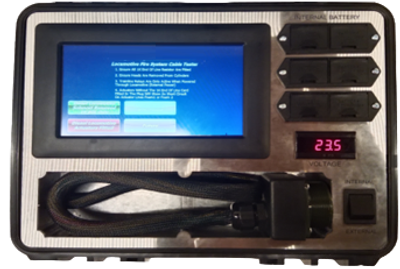

The locomotive fire panel is housed in a robust metal enclosure measuring 370 mm (H) × 320 mm (W) × 112 mm (D). A stainless-steel front fascia includes a hinged protective cover to shield the LCD and restrict unauthorized access.
Designed as a direct mechanical replacement for existing systems, the enclosure and fascia maintain identical mounting points and cut-outs for seamless changeover.
Moreover, the panel is fully backwards compatible with the original fire suppression technology. All field wiring, terminations, and interfaces remain unchanged. Upgrading requires merely disconnecting the existing 40-way ribbon cable and securing the new fascia to the current enclosure—no modifications to the driver’s cab installation are needed.
